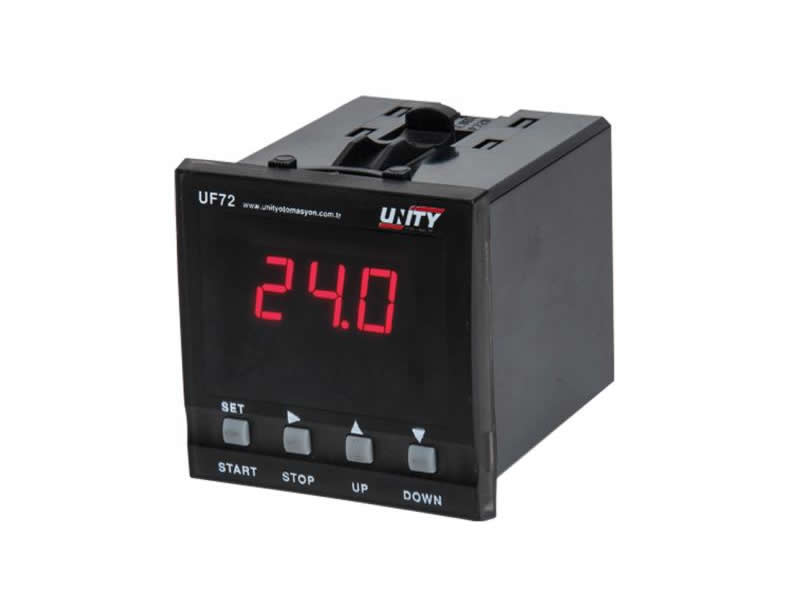

UF72 Brake Tester
The UF72 is used to control brake output in applications with dust or pad brakes using a manual or analog reference.
PDF Döküman Get a QuoteThe UF72 Brake Control Unit is used in applications where brake torque must be adjusted via an operator or an external analog reference. It can be used as an in-panel control unit in dry-brake, pad-brake, and powder-clutch applications.
The device allows for setting the start and set values directly, or it can be operated using an external start signal and a 0-10 V set value input. This design provides practical use in roll unwinding, tension control, and braking applications.
Features
- Model
- UF72
- Product Type
- Brake control unit / module
- Feeding
- 24 V DC
- Brake Output
- 0–24 V
- Maximum Current
- 4 A
- Control Input
- Set via the device or an external 0–10 V reference
- Measurement
- 76 x 76 x 100 mm
- Accuracy
- 10-bit
- Application
- Dust brake, pad brake, and powder clutch inspection
